Buffer & Dampers

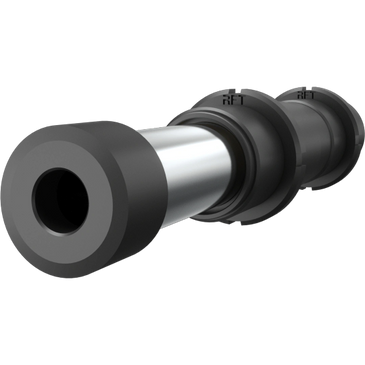

Impact buffer type ZKSP
Type SWD Rope Rocker Damper
Type SWD Rope Rocker Damper

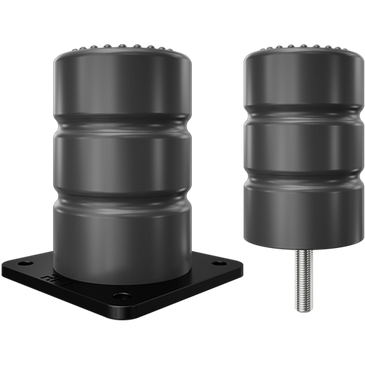

- Version with central mounting
- Version with base plate (made of aluminum, plastic or steel)
- Impact buffer made of foamed polyurethane
Excellent dampening capacity - Optimum energy absorption
- Steady compression behavior
- High volume compressibility with minimal transverse expansion
- Good resistance to oil and grease
Good resistance to ozone as well as ultraviolet and energy-rich radiation - Temperature range -30°C to +80°C
Type SWD Rope Rocker Damper
Type SWD Rope Rocker Damper
Type SWD Rope Rocker Damper

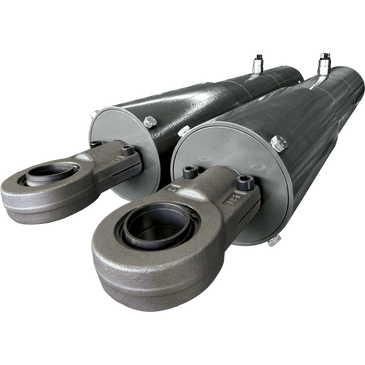

SWD – Rope Rocker Damper. Immediate force transmission in case of rope failure.
- Implementation in a rope rocker system of a hoisting system
- Also suitable for hoists in nuclear power plants / KTA systems or boom hoists
- Immediate power transfer / no energy increase due to free fall
- Low impact factor
- Length and force compensation for the ropes in the rope rockers
Hydraulic buffer type IPS
Type SWD Rope Rocker Damper

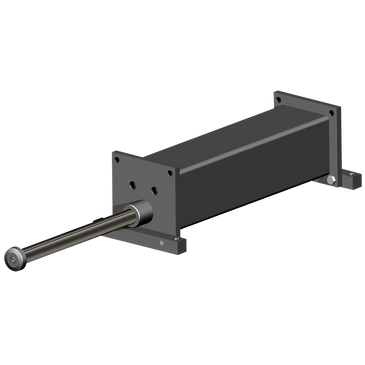

Hydraulic buffer type PUDZ III Cartridge
Application in storage and retrieval machines / Automatic high bay warehouse
- With integrated automatic switching valve
- Hydraulic buffer for emergency stop situations
- Special version for operation in cold storages to -50°C
- Particularly suitable for machines which approach the buffer operatively
- Integrated piston accumulator with nitrogen allows moderately increasing restoring force during the slow pushing the piston rod
Hydraulic buffer type PUDZ III Cartridge

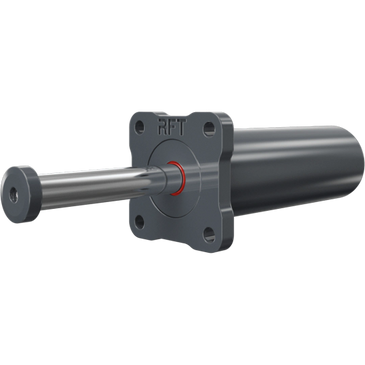

Typ PUDZ III – Heavy Duty Shock Absorbers
Hydraulic buffer type PUDZ III Cartridge
Particularly suitable in application for pilling and drilling rigs as well as for mechanical engineering and plant constructions.
Type HERKULES II / Buffers
Typ PUDZ III – Heavy Duty Shock Absorbers
Typ PUDZ III – Heavy Duty Shock Absorbers
Hydraulic buffer for emergency stop applications in storage and retrieval systems / Automatic high-bay warehouses.
REPLACEMENT FOR ALGI BUFFER!
- Piston rod size ø 40 mm to ø 63 mm
- Stroke lengths from 100 mm to 1200 mm
- Energy absorption up to 130 kJ/hub
- Buffer force up to 220 kN
- Flange mounting type: Front flange EF, Bottom flange FF or Pedestal flange SF
- MADE IN GERMANY, own production

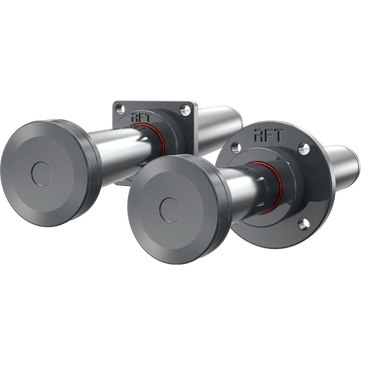

Typ PUDZ III – Heavy Duty Shock Absorbers
Typ PUDZ III – Heavy Duty Shock Absorbers
Typ PUDZ III – Heavy Duty Shock Absorbers
Particularly suitable for crane systems, heavy machinery and handling equipment of all kinds.
- Own production in Germany
- Buckling loads, especially with long strokes, are always taken into account
- Hydraulic buffers are calculated according to the system / highest safety!
- Integrated piston accumulator with nitrogen filling
- Progressively rising restoring force (buffer force) at the end of stroke
- Piston rod double chromed – Marine protected (standard)
- PUDZ III is an optimization of the well-known PUDZ II
